Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500

Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500

pneumatic liquid filler machine

double nozzles filling machine

shampoo oil chemical filler

Neem contact met ons op
Vraag een offerte
Productgegevens
Machine output:
500 flessen per uur, 1000 flessen per uur
toepassing:
食品, 饮料, 化学品 (Voedsel, dranken en chemicaliën)
包装类型:
papierdoos
Verpakkingsmateriaal:
Hout
Automatiseringsniveau:
Semi-automatisch
Type of Power:
气动
elektrische druk:
220 V/110 V
Origineel:
Guangdong, China
品牌:
Sammi.
尺寸 ((lang × breed × hoog):
96*45 * 38mm
Onderhoudsperiode:
1 jaar
核心卖点:
Hoge precisie
Vulstoffen:
Water, olie, sap
Nauwkeurigheid vullen:
1G
Mechanische testrapport:
可提供
Video uitgaande kwaliteitscontrole:
可提供
Kerncomponent:
Motor
Type:
便宜的 油灌装机, 装装机. Goedkoop van 油灌装机, 装装机.
材料:
niet-gelegeerd staal
Vulbereik:
50-500ML
aanvulsnelheid:
10-35n/min (bijvoorbeeld met water)
Fout bij het invullen:
± 1%
de waarheid:
医疗
Lokale service locatie:
营销类型:
Nieuwe producten 2020年
状态:
Nieuw
适用行业:
维修店, 家用, 食品店, 餐饮店. Ik heb geen idee.
Tentoonstellingslocatie (in welke landen in het buitenland zijn er voorbeelddiensten?):
Geen
Kerncomponentkwaliteitsborgingstermijn:
1 jaar
Gewicht:
40 kg
Markeren:

pneumatic liquid filler machine

,

double nozzles filling machine

,

shampoo oil chemical filler

Betaling en verzendvoorwaarden
Min. bestelaantal
1 set
Prijs
$360-450 / set
Productbeschrijving

Double nozzles liquid filling machine

Product Description

Features:

1.Reasonable design,compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device





Application:

Widely used by industries in the Food & Beverage, Cosmetics, Personal.

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.

It is an ideal device for low viscosity fluid filling.







Principle:

G1WY-2Y series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
 materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.


1.Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.


2.Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.


3.Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.





Technical Parameters:

 Model G1WY-2Y
 Filling range 10-100ml, 30-300ml,50-500ml,100-1000ml,300-3000ml, 1000-5000ml
 Filling material  liquid,oil,beverage,shampoo,perfume etc
 Driven  Electric and pneumatic
 Air compressor  1.5hp
 Applicable pressure  0.4-0.6mpa
 Working head  Double heads
 Nozzle size  4mm/8mm/12mm(can be customized)
 Packaging size  125 x 40 x30cm
 Gross weight  67kg
 Automatic grade  semi auto & automatic
 Machine material  stainless steel



Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 0

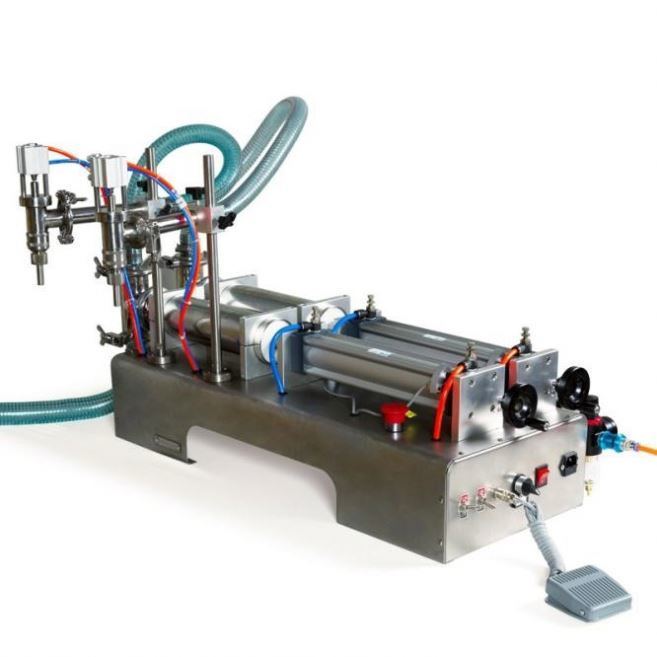

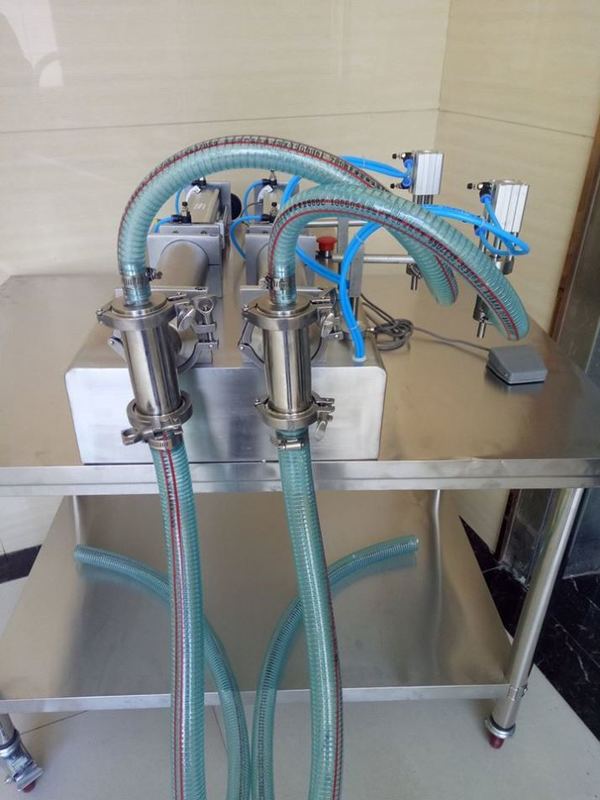

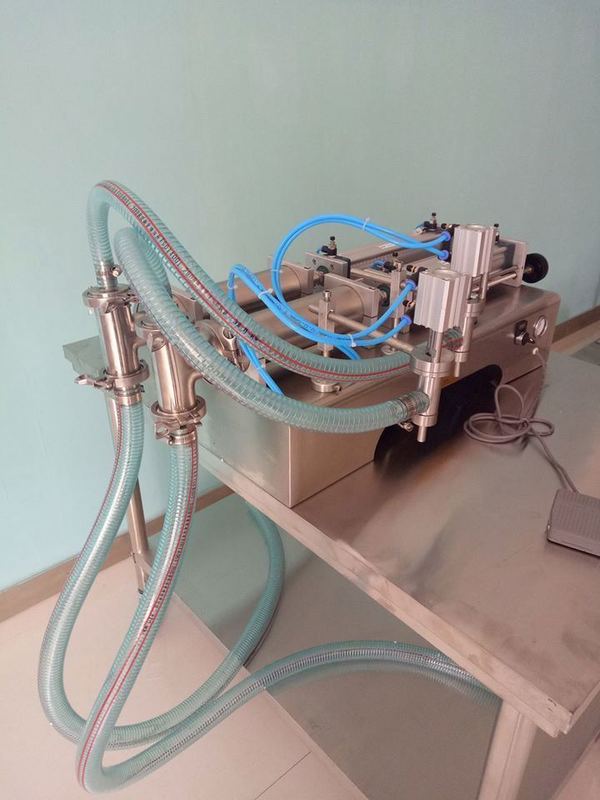

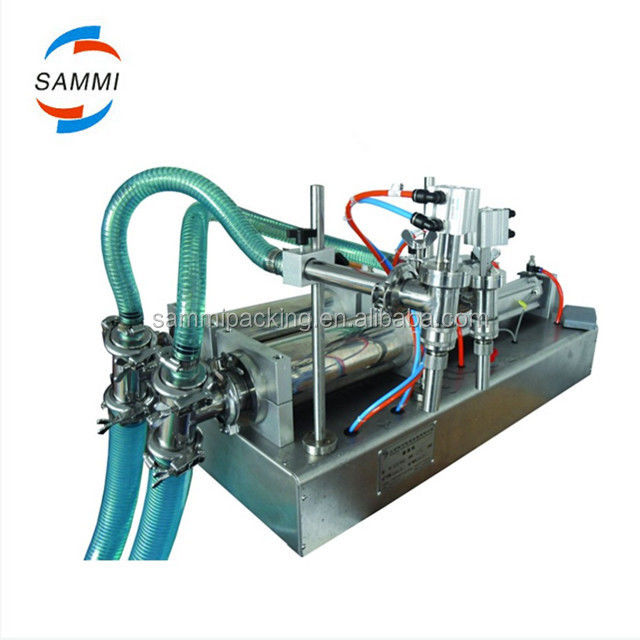

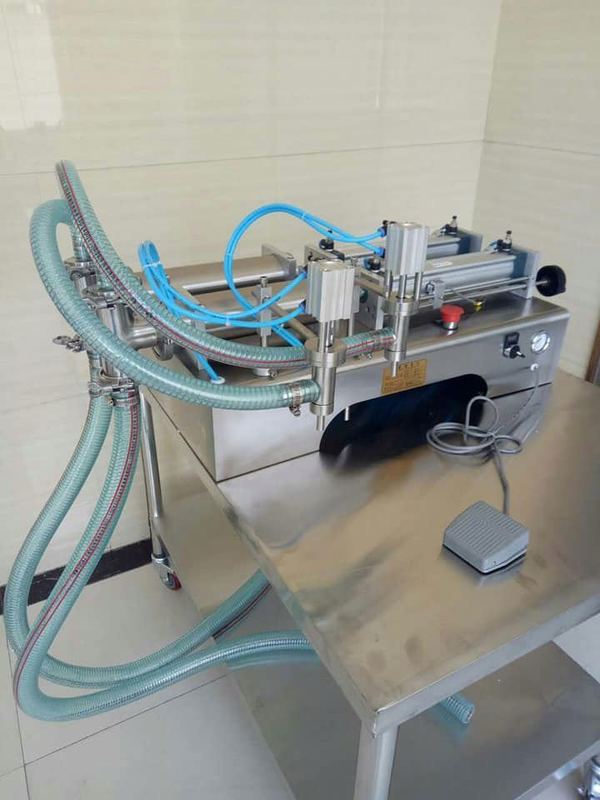

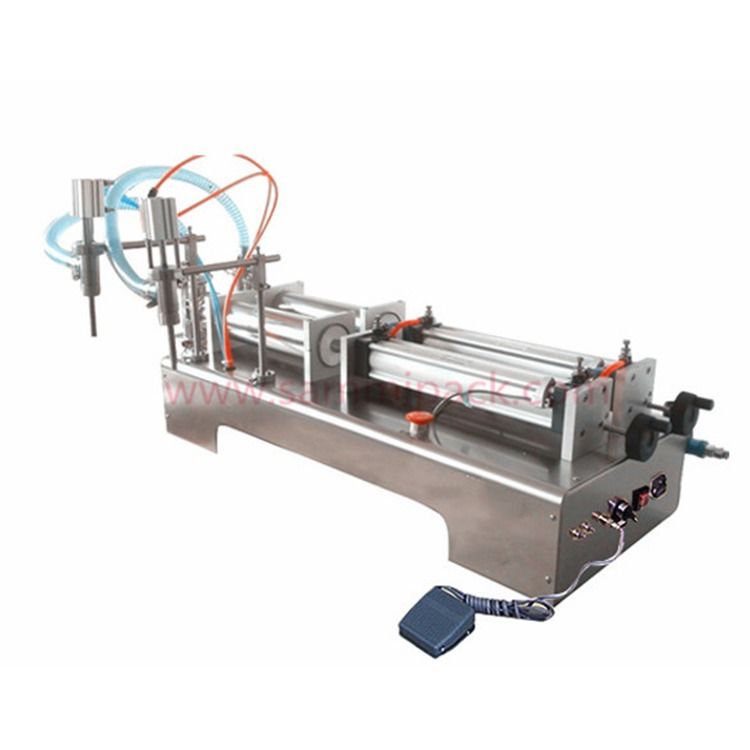

Machine photos



Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 2Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 4Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 6Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 8Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 10Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 12Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 14Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 16Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 18Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 20Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 22



Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 24
