Thuis > producten > Automatische Verpakkende Machine >

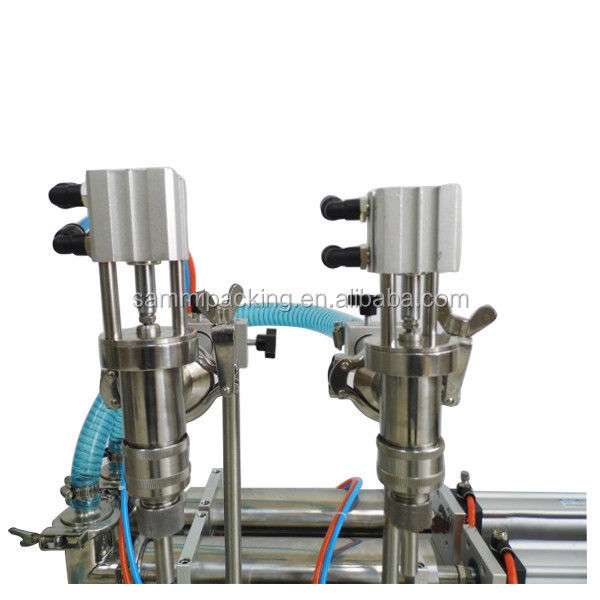

High Quality Double Heads Pneumatic Piston Milk Filling Machine, Liquid Detergent,shampoo,bath Gel Filler(500-5000ml)

double heads pneumatic filling machine

milk filling machine 500-5000ml

automatic liquid detergent filler

Neem contact met ons op

Vraag een offerte

High Quality Double Heads Pneumatic Piston Milk Filling Machine, Liquid Detergent,shampoo,bath Gel Filler(500-5000ml)

Productgegevens

Machine output:

500 bottles per hour

toepassing:

Dranken

包装类型:

papierdoos

Verpakkingsmateriaal:

Hout

Automatiseringsniveau:

Semi-automatisch

Type of Power:

Elektrisch

elektrische druk:

220V50Hz

Origineel:

China

品牌:

Sammi.

尺寸 ((lang × breed × hoog):

96*45*38 mm

Onderhoudsperiode:

1 jaar

核心卖点:

Hoge precisie

Vulstoffen:

andere, 牛奶, 水, olie, sap

Mechanische testrapport:

可提供

Video uitgaande kwaliteitscontrole:

可提供

Kerncomponent:

PLC's

Toepassing:

Medisch

Lokale service locatie:

Geen

Tipe in de handel brengen:

Nieuw product 2020

Type:

装机

状态:

Nieuw

适用行业:

Productiehal

Tentoonstellingslocatie (in welke landen in het buitenland zijn er voorbeelddiensten?):

Geen

Kerncomponentkwaliteitsborgingstermijn:

1 jaar

Gewicht:

40,0 kg

Markeren:

double heads pneumatic filling machine

milk filling machine 500-5000ml

automatic liquid detergent filler

Betaling en verzendvoorwaarden

Min. bestelaantal

1 set

Prijs

$400-600 / set

Verwante producten

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Vind de beste prijs

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Vind de beste prijs

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Vind de beste prijs

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

Feature:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Widely used by industries in the Food & Beverage, Cosmetics, Personal

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields

.And it is an ideal device for low viscosity fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Technical Parameters:

Machine model	GFA-W-2Y -100	GFA-W-2Y -300	GFA-W-2Y -500	GFA-W-2Y -1000	GFA-W-2Y 3000	GFA-W-2Y -5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can offer customized according to customer request
