Multi Head Piston Liquid Filling Machine, Liquid Bottling Machine

multi head piston filling machine

automatic liquid bottling machine

piston liquid filling machine with warranty

Neem contact met ons op

Vraag een offerte

Multi Head Piston Liquid Filling Machine, Liquid Bottling Machine

Productgegevens

Machine output:

500 flessen per uur, 1000 flessen per uur

toepassing:

饮料, 化学品, 食品

包装类型:

papierdoos

Verpakkingsmateriaal:

Hout

Automatiseringsniveau:

Semi-automatisch

Type of Power:

气动

elektrische druk:

220 V/110 V

Origineel:

Guangdong, China

品牌:

Sammi.

尺寸 ((lang × breed × hoog):

96*45 * 38mm

Onderhoudsperiode:

1 jaar

核心卖点:

Hoge precisie

Vulstoffen:

Water, olie, sap

Nauwkeurigheid vullen:

Mechanische testrapport:

可提供

Video uitgaande kwaliteitscontrole:

可提供

Kerncomponent:

Motor

材料:

niet-gelegeerd staal

de waarheid:

医疗

Lokale service locatie:

无

营销类型:

Nieuwe producten 2020年

Type:

灌装机

Voorwaarden:

Nieuw

适用行业:

机械修理厂, 家庭使用, 食品店, 食品和饮料店. voor de verkoop van apparatuur, voor het gebruik in huishoudens, voor d

陈列室位置:

无

Onderhoud van kernonderdelen:

1 jaar

Gewicht:

48 KG

Markeren:

multi head piston filling machine

automatic liquid bottling machine

piston liquid filling machine with warranty

Betaling en verzendvoorwaarden

Min. bestelaantal

1 set

Prijs

$225-288 / set

Verwante producten

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Vind de beste prijs

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Vind de beste prijs

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Vind de beste prijs

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

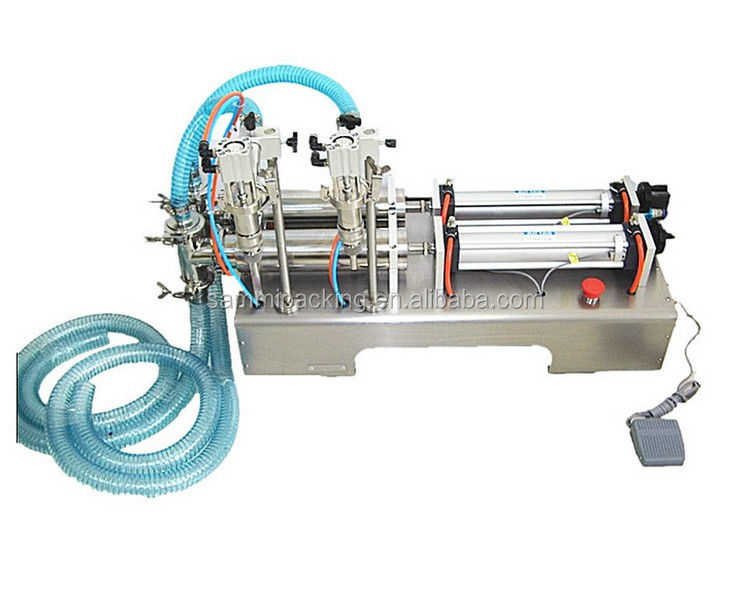

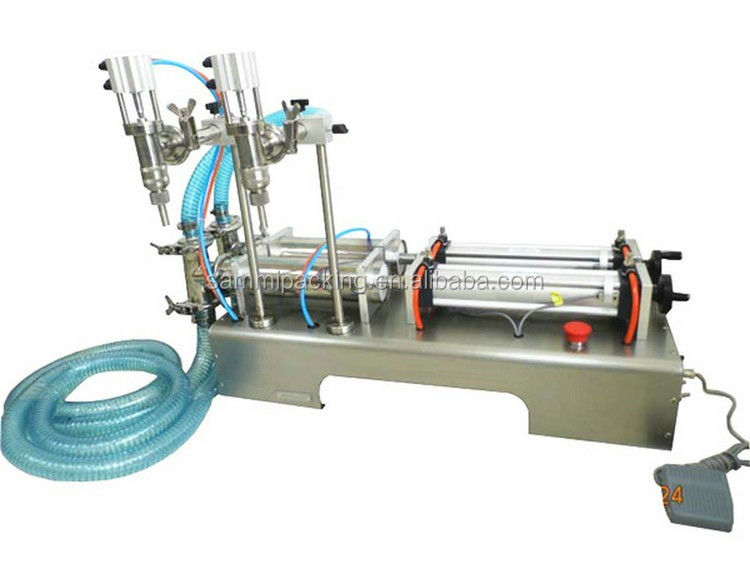

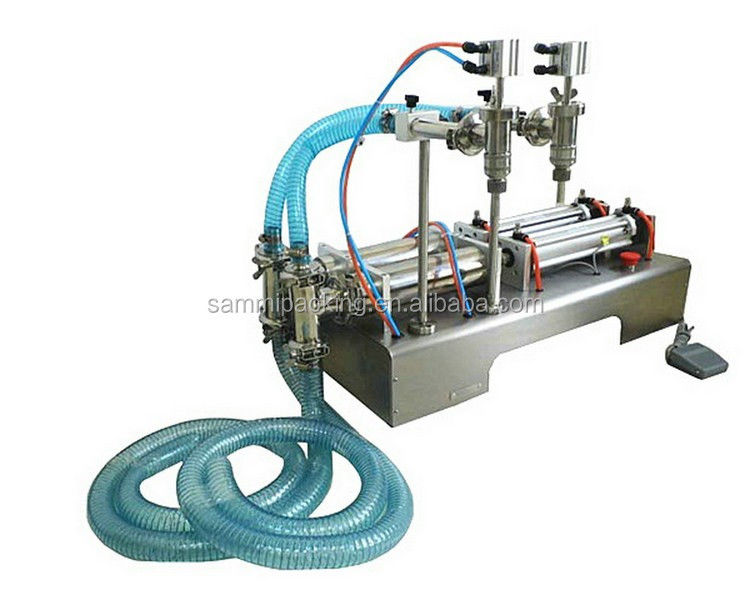

G1WY-500 Double heads Liquid Filling Machine

Features:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Widely used by industries in the Food & Beverage, Cosmetics, Personal

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields

.And it is an ideal device for low viscosity fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.

Technical Parameters:

Machine model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-3000	G1WYG-5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg

Machine can offer customized according to customer request
