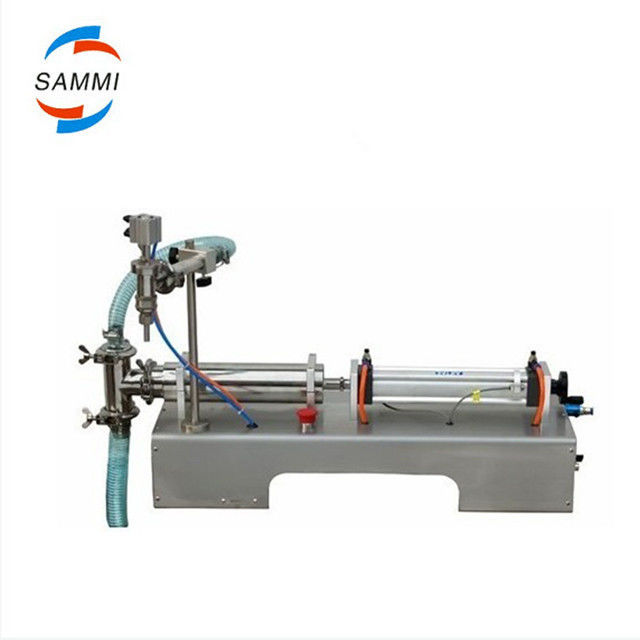

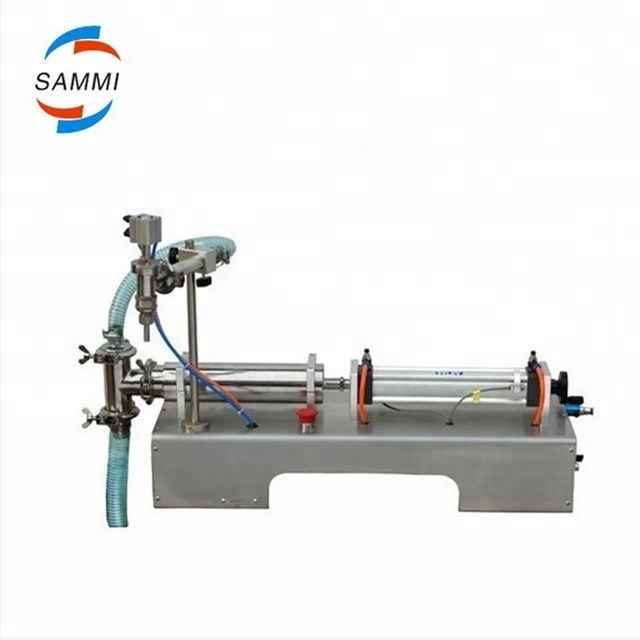

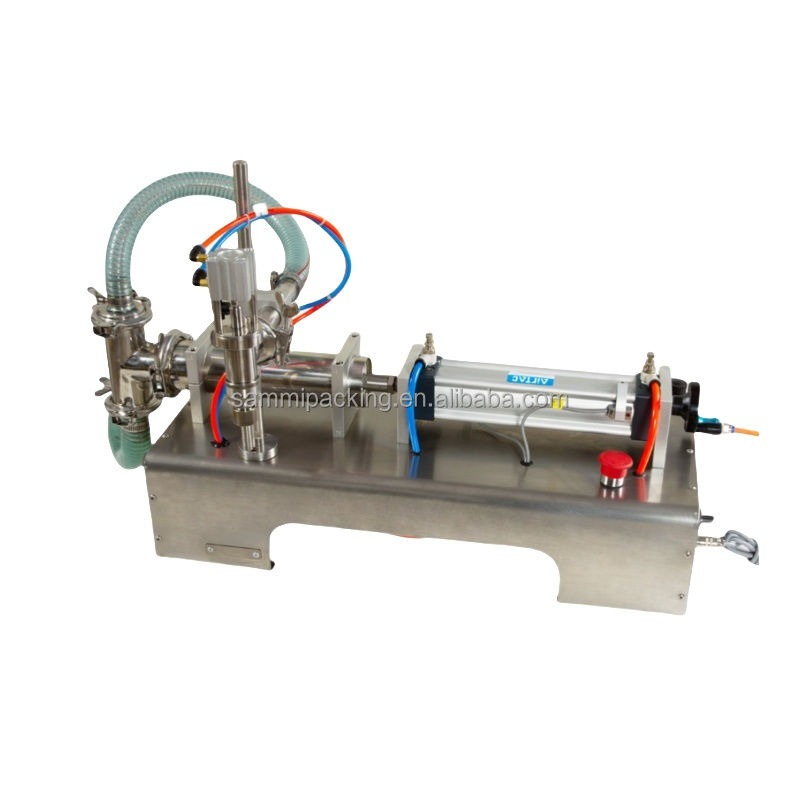

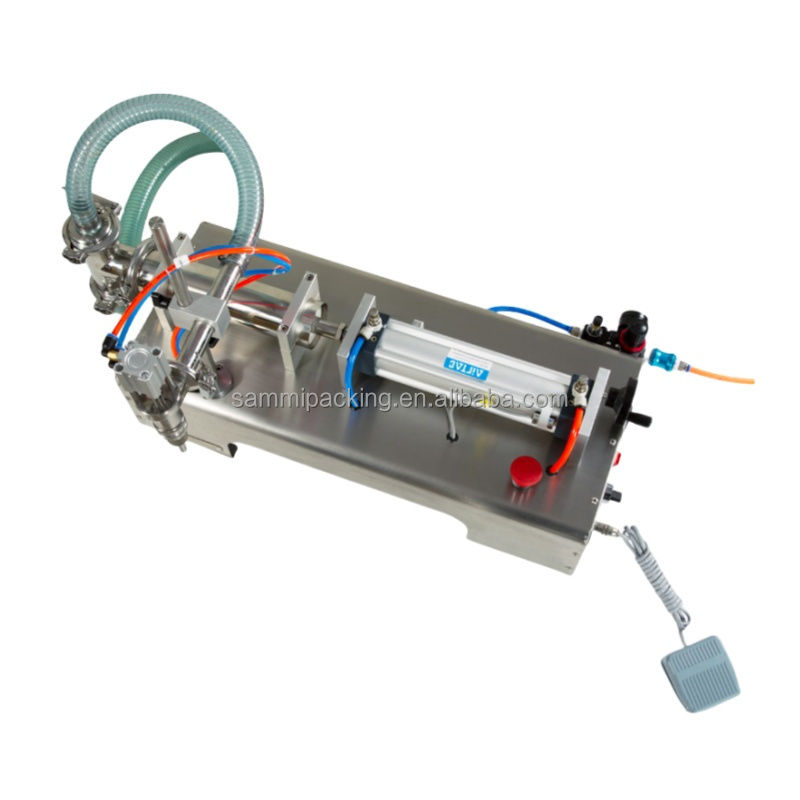

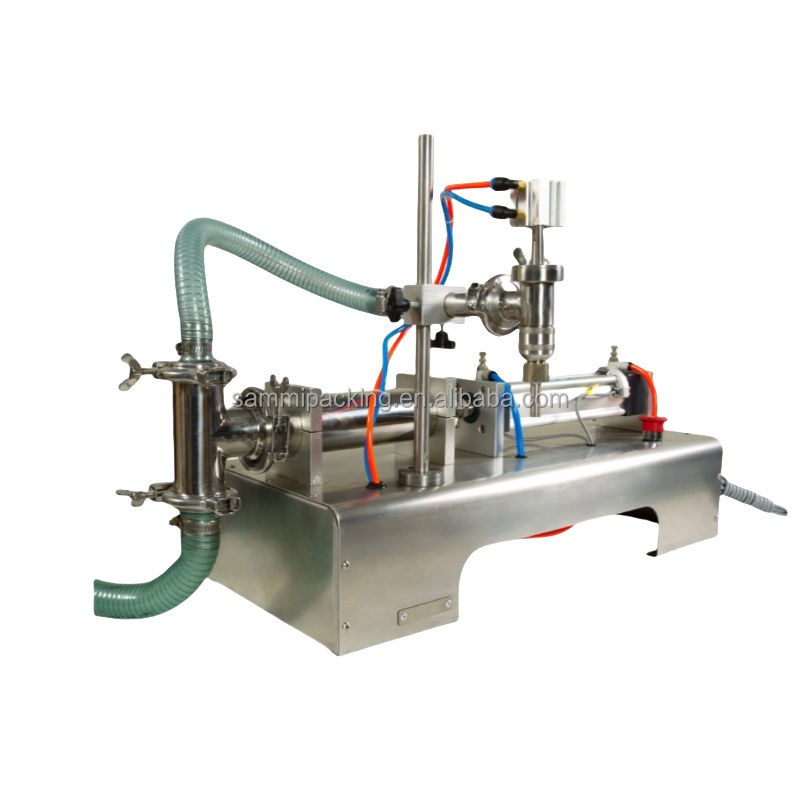

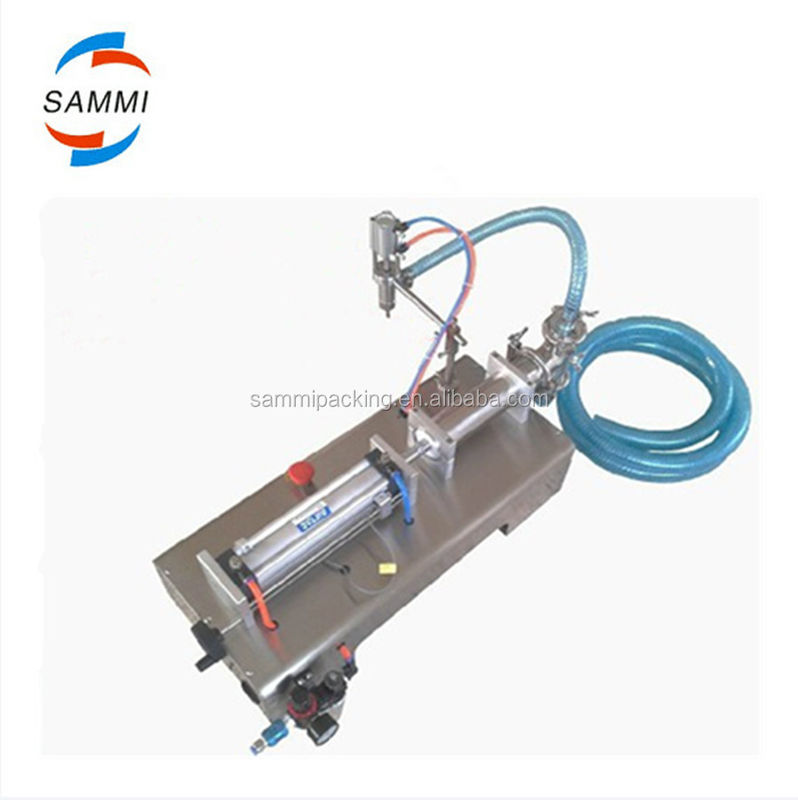

Thick Liquid Paste Pneumatic Filling Machine With Air Pressure Hopper 100-1000Ml

pneumatic filling machine with air pressure hopper

thick liquid paste filling machine 100-1000ml

automatic packaging machine for viscous liquids

Neem contact met ons op

Vraag een offerte

Thick Liquid Paste Pneumatic Filling Machine With Air Pressure Hopper 100-1000Ml

Productgegevens

toepassing:

食品, 饮料, 化学品 (Voedsel, dranken en chemicaliën)

包装类型:

papierdoos

Verpakkingsmateriaal:

Hout

Automatiseringsniveau:

Semi-automatisch

Type of Power:

气动

elektrische druk:

220 V/110 V

Origineel:

Guangdong, China

品牌:

Sammi.

尺寸 ((lang × breed × hoog):

96*45 * 38mm

Onderhoudsperiode:

1 jaar

核心卖点:

Gebruiksduur

Vulstoffen:

Water, olie, sap

Nauwkeurigheid vullen:

Mechanische testrapport:

可提供

Video uitgaande kwaliteitscontrole:

可提供

Kerncomponent:

Motor

售后服务系统 (verkochte dienstverlening):

视频技术支持, 线上支持. Ik ben er niet voor.

Gewicht (KG):

材料:

niet-gelegeerd staal

vullingsmateriaal:

Vloeistof met een lage slijtbaarheid

Vulbereik:

2-50ml 10-150ml 30-300ml 50-500ml 100-1000ml

aanvulsnelheid:

10-30b/min

Fout bij het invullen:

± 1%

de waarheid:

医疗

Lokale service locatie:

无

营销类型:

Nieuwe producten 2020年

Voorwaarden:

Nieuw

陈列室位置:

无

Markeren:

pneumatic filling machine with air pressure hopper

thick liquid paste filling machine 100-1000ml

automatic packaging machine for viscous liquids

Betaling en verzendvoorwaarden

Min. bestelaantal

1 set

Prijs

$270-360 / set

Verwante producten

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Vind de beste prijs

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Vind de beste prijs

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Vind de beste prijs

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

Application:

This filling machine is improved on the basis of foreign advanced filling machine technology, with simple structure and reasonable design, high filling accuracy,very easy to operate. Applied in cosmetic,medical, chemistry, foodstuff, beverage,pesticides and special industries. It is an ideal equipment for filling adhensive fluid.

Characteristic:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Technical Parameters:

Machine model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-2500	G1WY-5000
Filling speed	5-20b/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	250-2500ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	≤±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can be customized according to customer,s requirement
